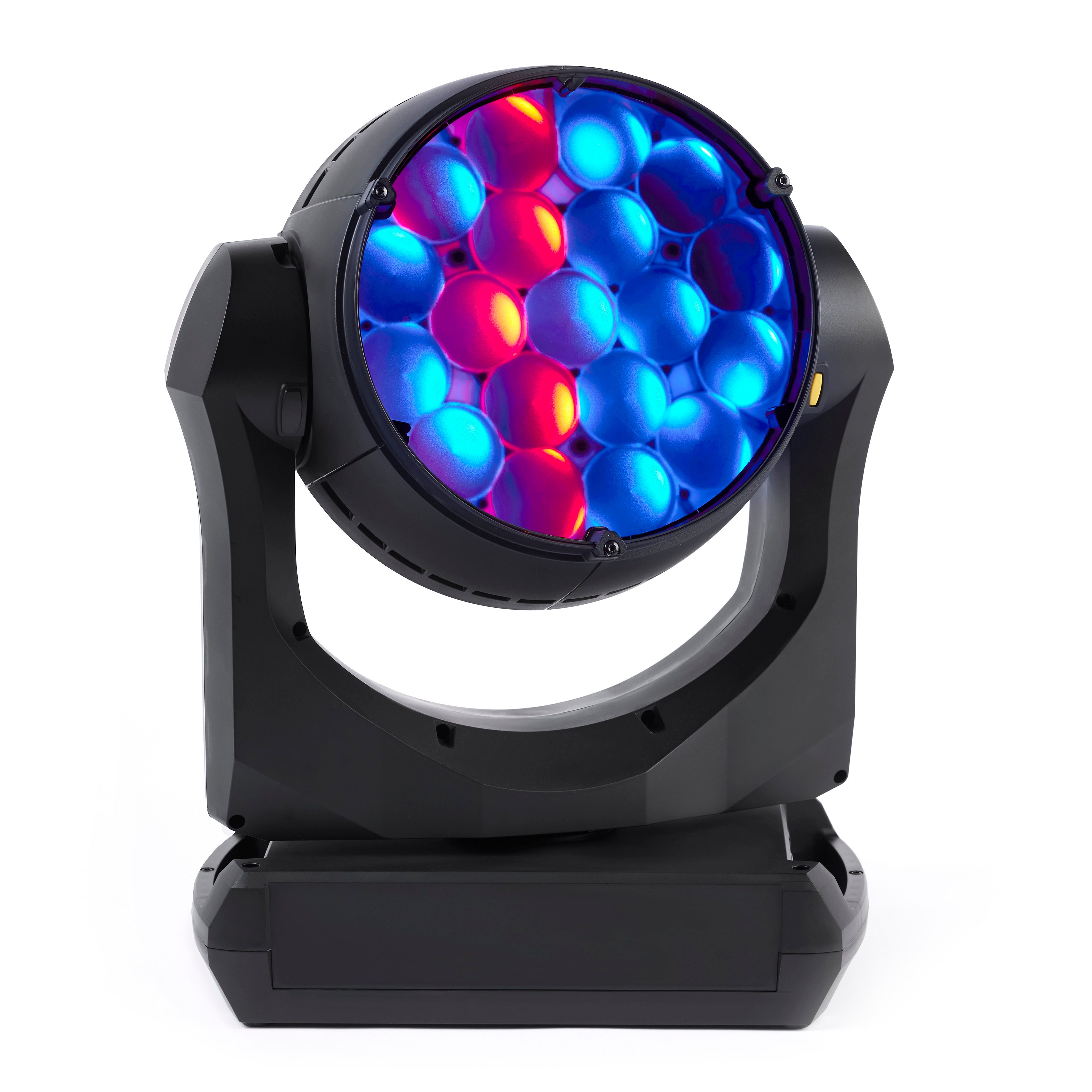

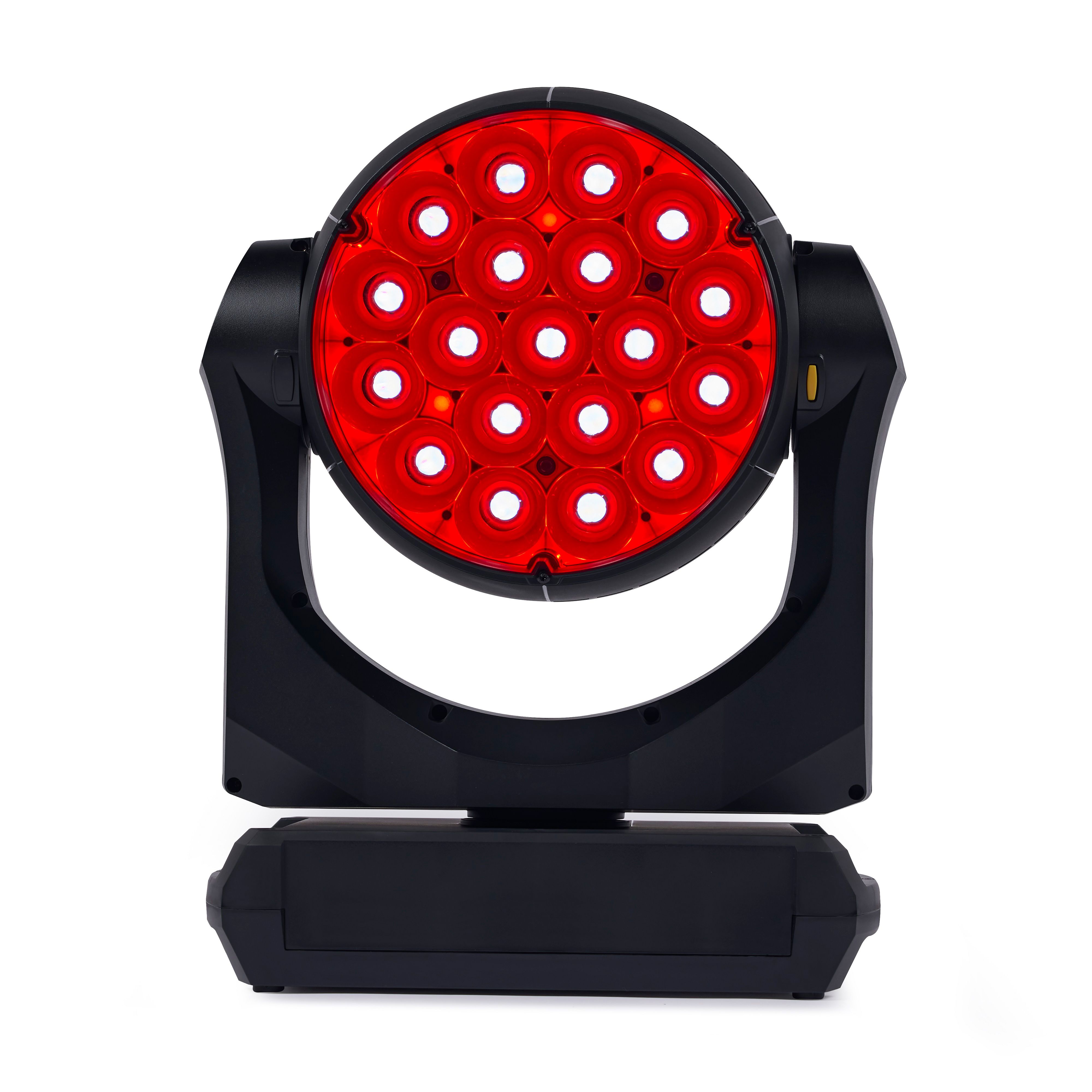

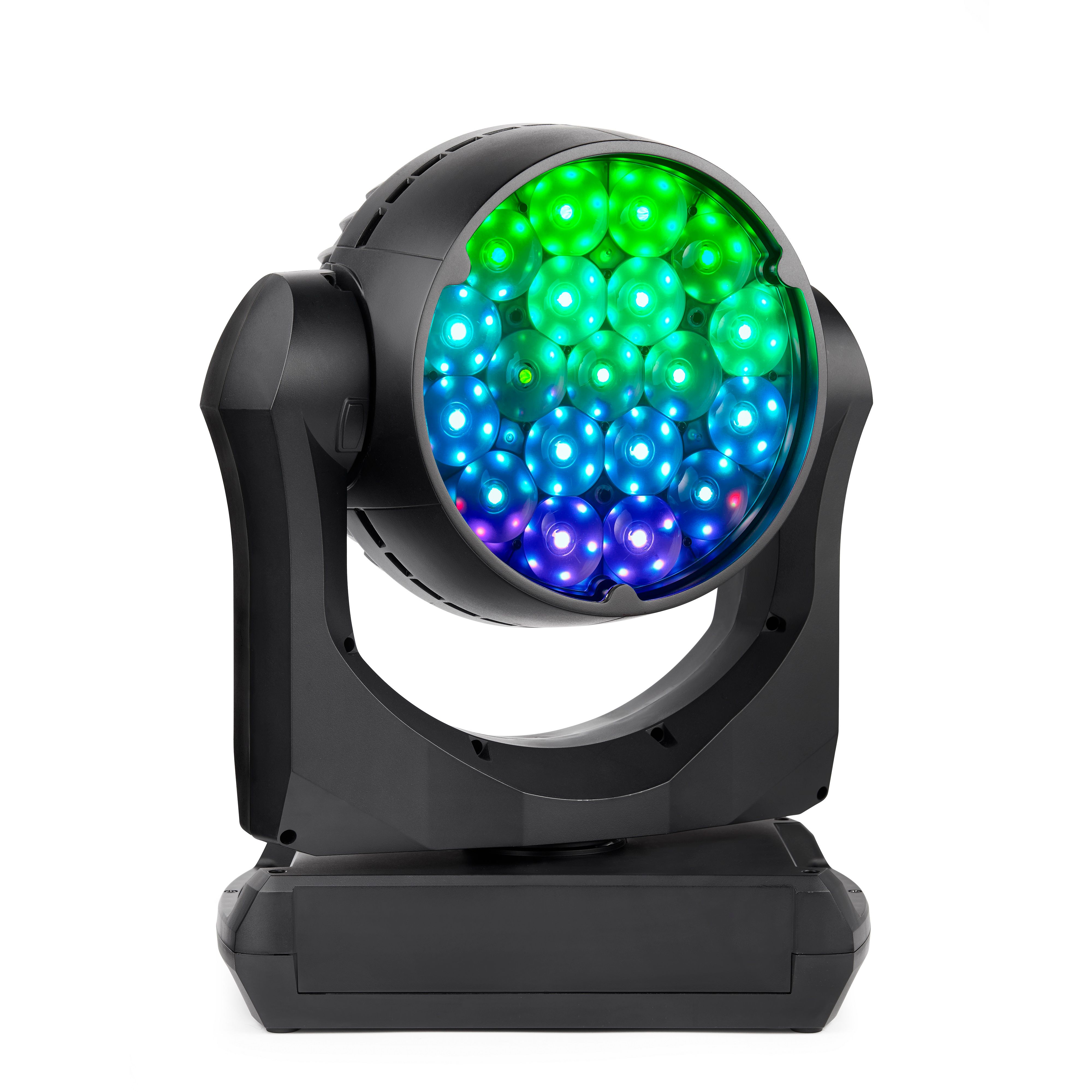

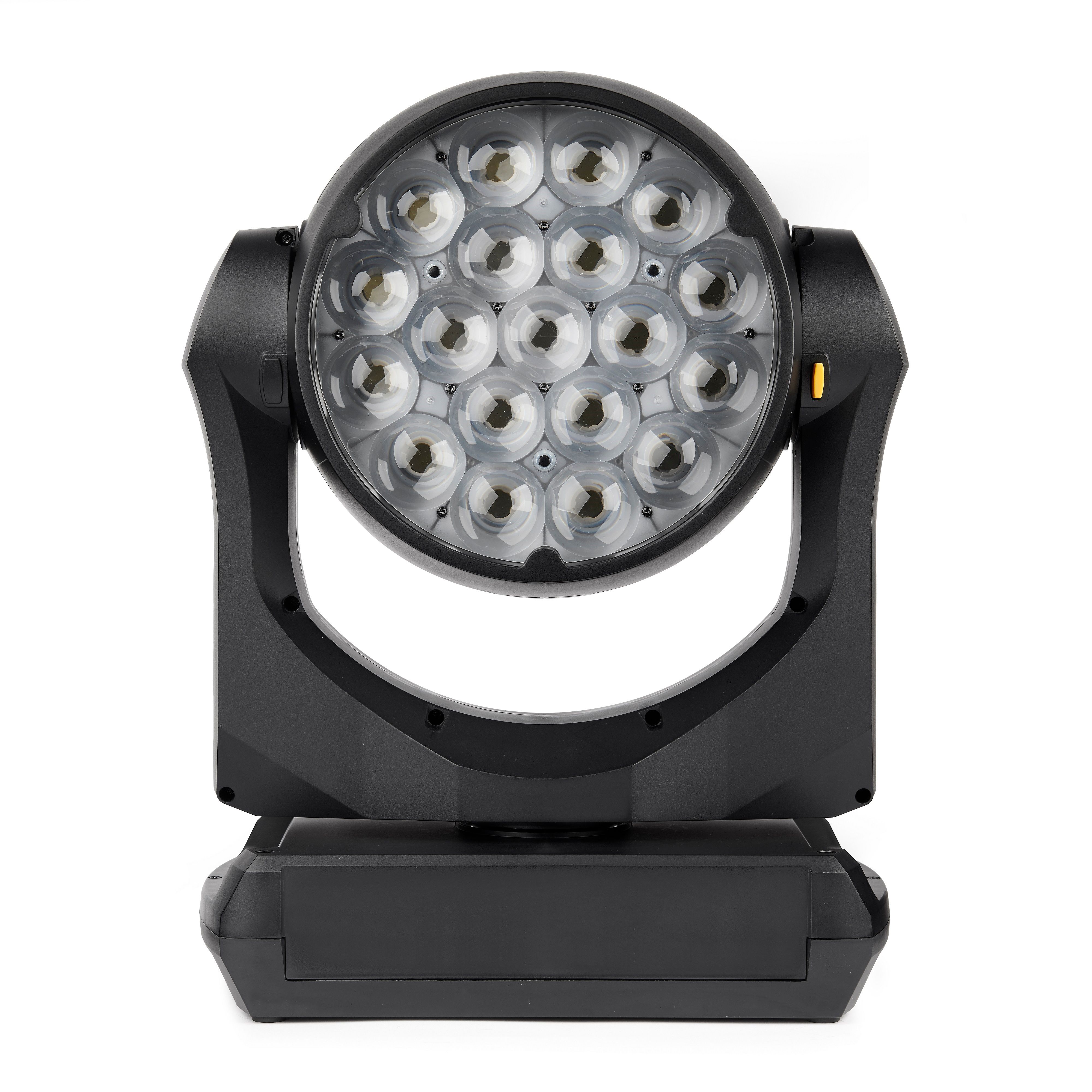

MAC Aura PXL
MAC Aura PXL
- MULTI-SOURCE WASH LIGHT
Category:
- Lighting
Units available:
- 37
- LIGHT SOURCE
-10,500 lumens RGBW light output
-High narrow intensity: 940,000 cd
-Pixelated Beam: 19x 40W RGBW LEDs
-Pixelated Aura: 141x 0.3W RGB LEDs
-Fully calibrated using Martin's Full Gamut Color Calibration
-Flicker-Free operation – LED driver frequency suitable for all kinds of camera applications
-LED Driver frequency adjustable for demanding applications
OPTICS
-Tight beam and beautiful wash field
-6 - 59° zoom – Precise, silent and fast zoom
-Even wash field with zero hotspot
-High intensity mid-air beams
-Minor color temperature shift from center to edge
SOFTLENS ACCESSORY
-Creates a softer edge wash field
-Reduces glare from fixture lens
-Minimal impact to Aura pixel effects
-Attaches to front of fixture
-Can remain attached to fixture inside flightcase SiP
COLOR PALETTE
-RGBW color mixing with very bright and vibrant saturated colors, as well as nice pastels and white tones
-Calibrated and Extended Color Modes
-Calibrated CTC control: 2,000 - 10,000 K
-Tungsten Emulation Option
-Virtual Color Wheel
DYNAMIC EFFECTS
-Ultra-quiet cooling system
-Theater / Broadcast mode at just 24.6 dB(A)
-Low noise pan/tilt and effects operation
CONSTRUCTION
-Weight:15.60 kg (34.39 lbs.)
-Dimensions: 410 x 489 x 232 mm
CONTROL
-Battery-powered control panel on the base
-DMX in & thru
-Ethernet in & thru, supporting Art-Net, sACN & Martin P3
-Fail-safe bypass on Ethernet ports
-RDM over DMX and RDM over Art-Net
The Martin MAC Aura PXL adds to the industry standard line of Martin wash lights with multilens and Aura backlight technology. Within the MAC family, it is positioned to support applications between the MAC Aura XB and MAC Quantum Wash fixtures and incorporates a newly designed front lens that is less "busy" with fewer, but bigger "bubbles", compared to the MAC Quantum Wash. This allowing for a tighter, higher intensity, narrow beam as well as beautiful wide wash fields. Bigger and brighter than the MAC Aura, the PXL features significantly higher intensity and a tighter beam as well as a smaller face and less busy lens look compared to the MAC Quantum Wash. The MAC Aura PXLs bigger “bubbles” provide a more appealing look and beautiful wide wash fields. It is also the first wash light in the market to feature individual pixel control for main beam pixels and Aura backlight with full control via DMX, Art-Net and sACN, as well as with Martin´s very own creative P3 video protocol. The compact size and low weight, trusted Martin build quality and feature set, and simple and clever setup and control options make the MAC Aura PXL ideal for rental customers and lighting designers working in concert/touring, TV shows and corporate, as well as customers supporting the high-end nightclub market.
